Set Accessories L1A1
Description
Each ACA holds:
4 x Fluorescein Box N4
4 x Message Carrier N4

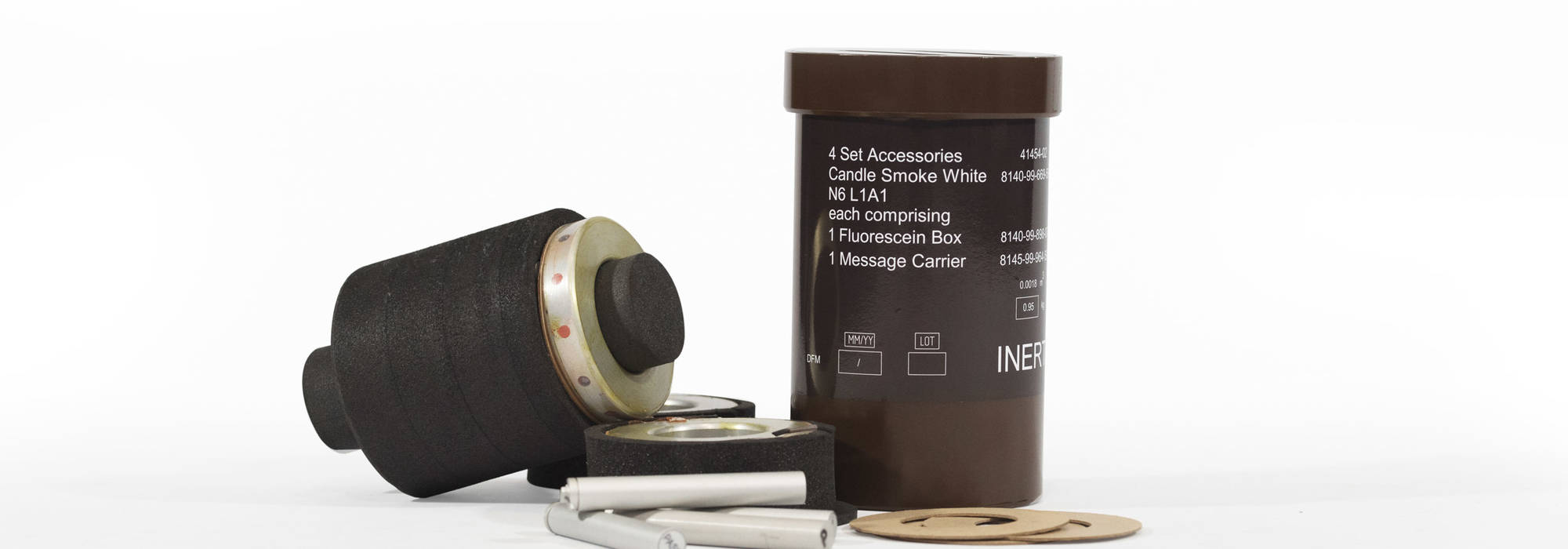

These can be housed as seen below. The Fluorescein
Box holds dye. As the Candle Smoke White surfaces,
the dye is released and will cover an area circa
1 square kilometre.
The ACA is designed to IP67, to retain the contents as fit for service for up to 5 years.
Application
The Set Accessories can be used for either safety or training purposes.
Characteristics
Dye colour: Fluorescein Yellow
Dye area: ~ 1 square kilometre
Initiation system: water dissolved retainer paper
Message carrier: fully submersible
Operation
Fit to Candle Smoke White N6 prior to inserting the store into the submarine signal ejector.Unique Selling Points
Storage & Transportation
Qty per box: 4
Hazard class: not applicable
NEQ: not applicable
GR Wgt: 3kg
Max / min temperatures: -36°C to +71°C
