The Rare Earth Free High Power Motor is capable of delivering high power and torque at a compact size with integrated cooling making it suitable for automotive applications in both electric and hybrid configuration. The Rare Earth Free design makes it a sustainable solution without compromising on performance.
Products

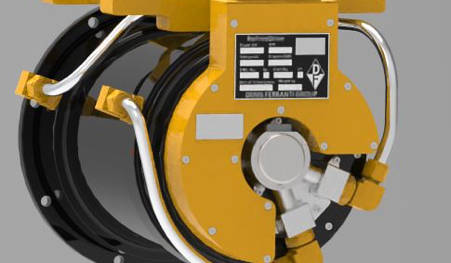

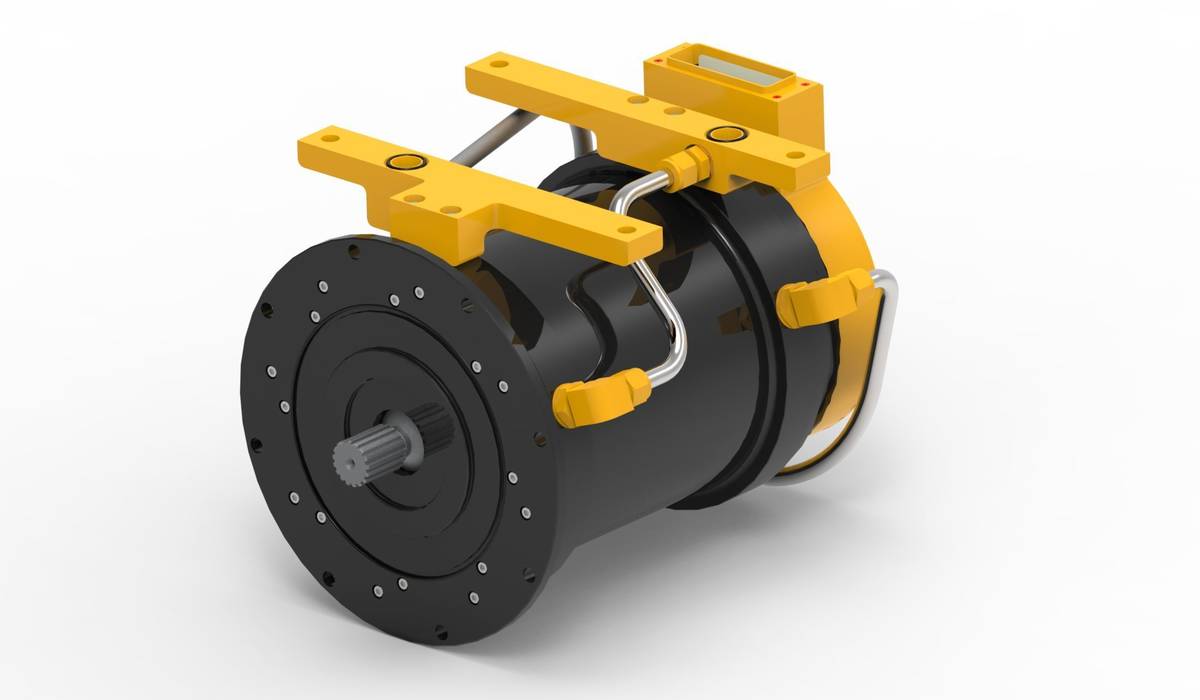

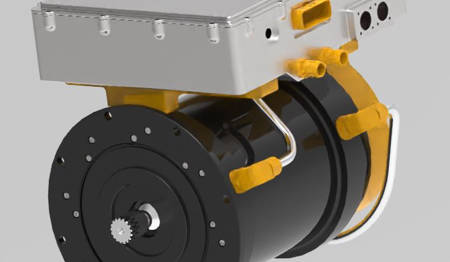

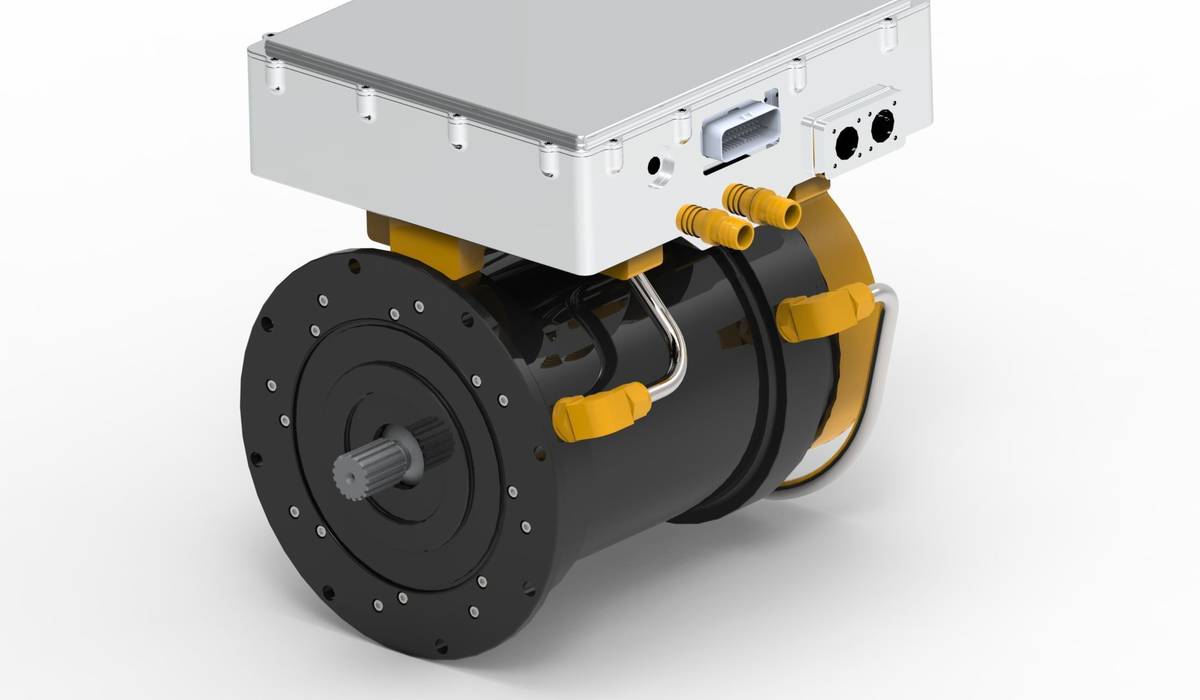

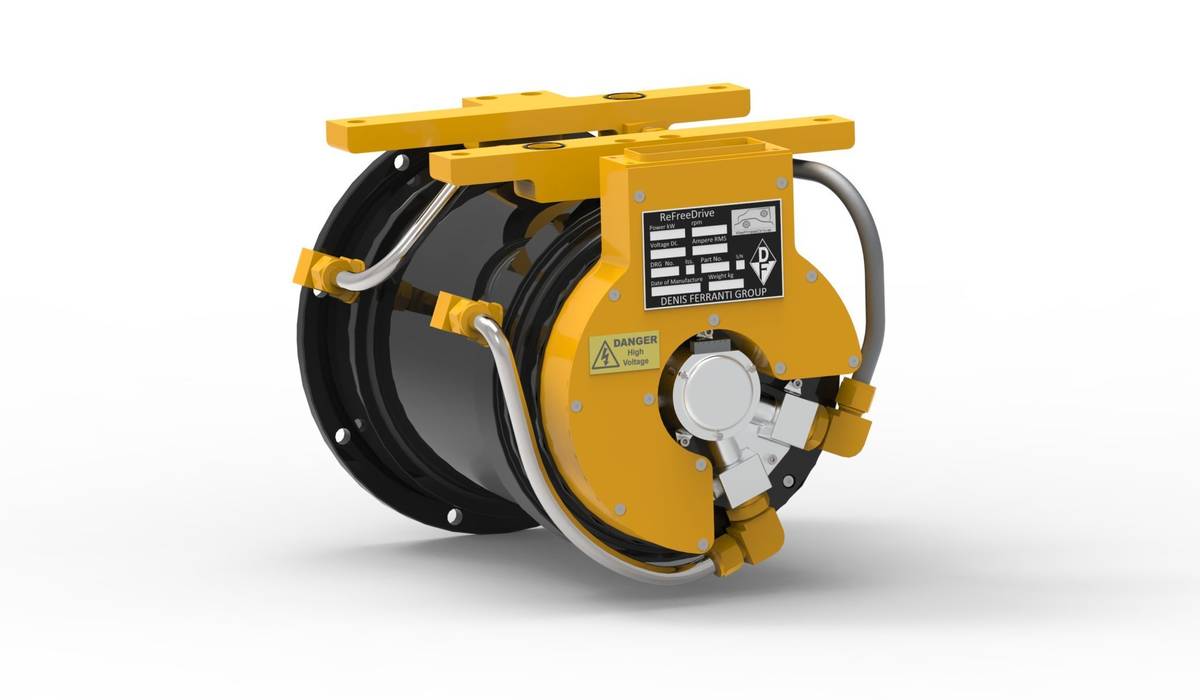

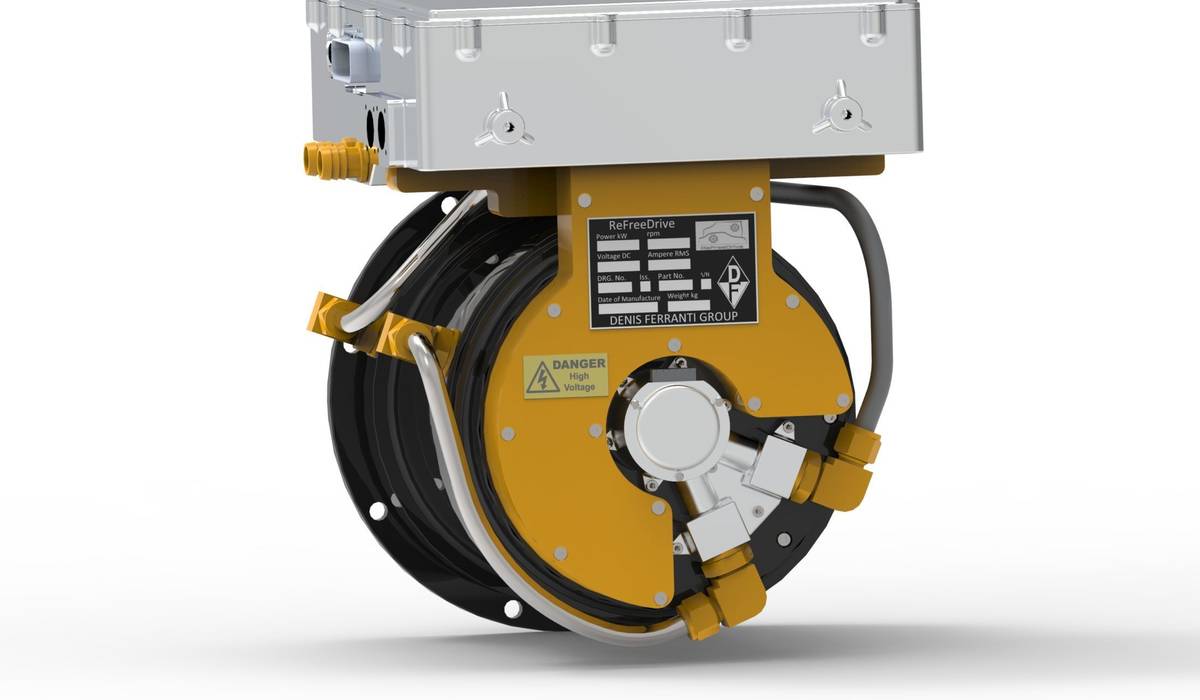

Automotive Rare Earth Free High Power Induction Motor
- Peak power: 200kW
- Peak torque 370Nm
- Speed: 0-20,000 rpm
Motor Features
- Induction machine
- Rare earth material free
- High Copper slot fill
- High speed capability
- High efficiency
- Shaft cooling
- Spiral water-jacket housing cooling
- Hairpin Winding
- Designed to IP67
- Sealed motor
Motor Specifications
Speed | 20,000 rpm |
Torque | 370 Nm |
Power | 200 kW |
Efficiency | >96% |
Voltage | 720 Vdc |
Current | 707 Apk |
Operating temperature range | -40 to 50 oC |
Mass | 38 kg |
