The High Power Electric Machine is one of a range of high power density electric Permanent Magnet Synchronous Motor optimised for high efficiency with a high power to weight ratio. It is designed for applications requiring high power for example aerospace, marine, off-highway and high power automotive applications with an added emphasis on safety and reliability.
Products

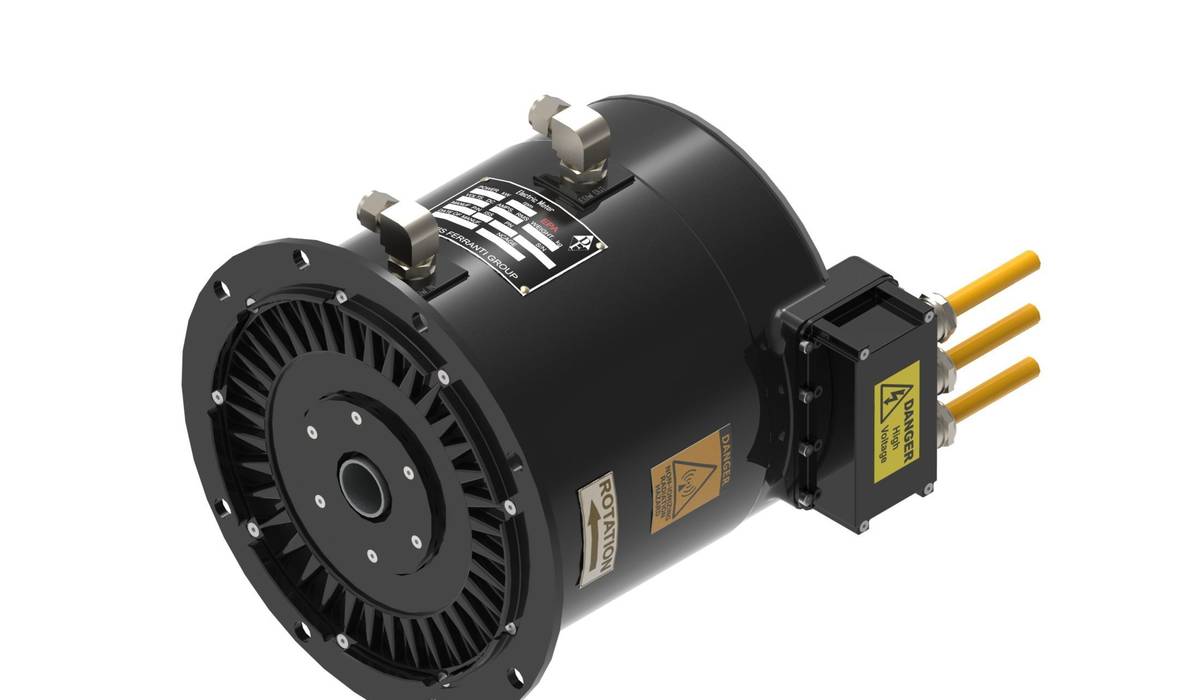

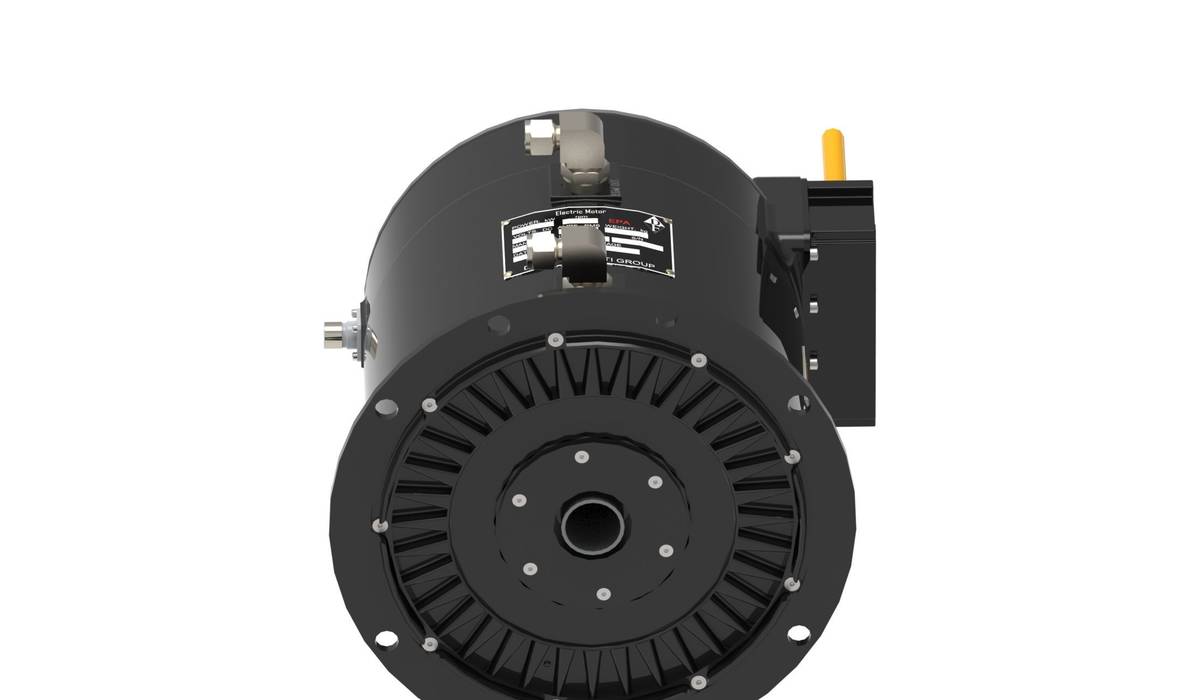

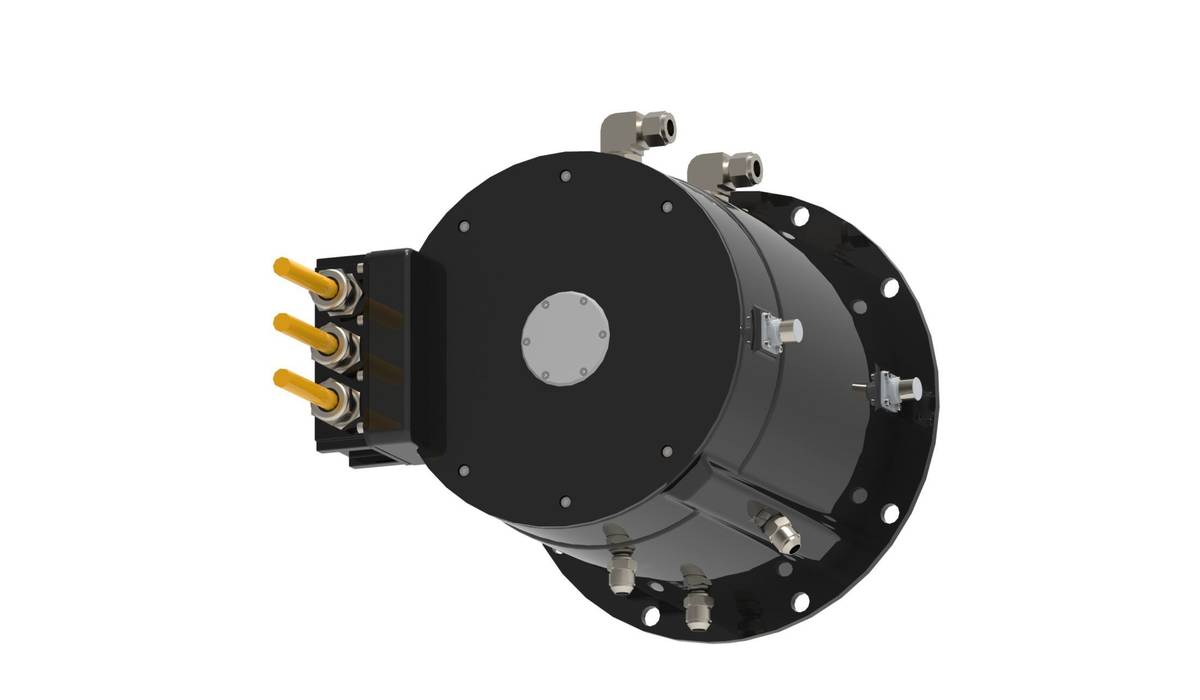

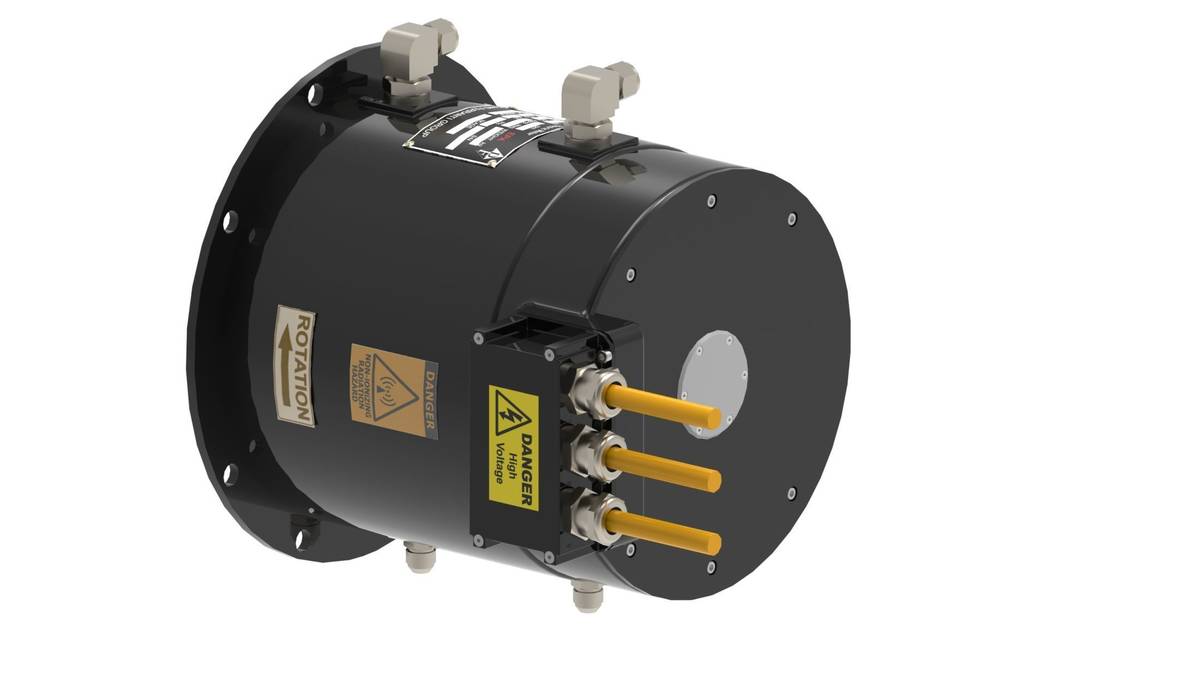

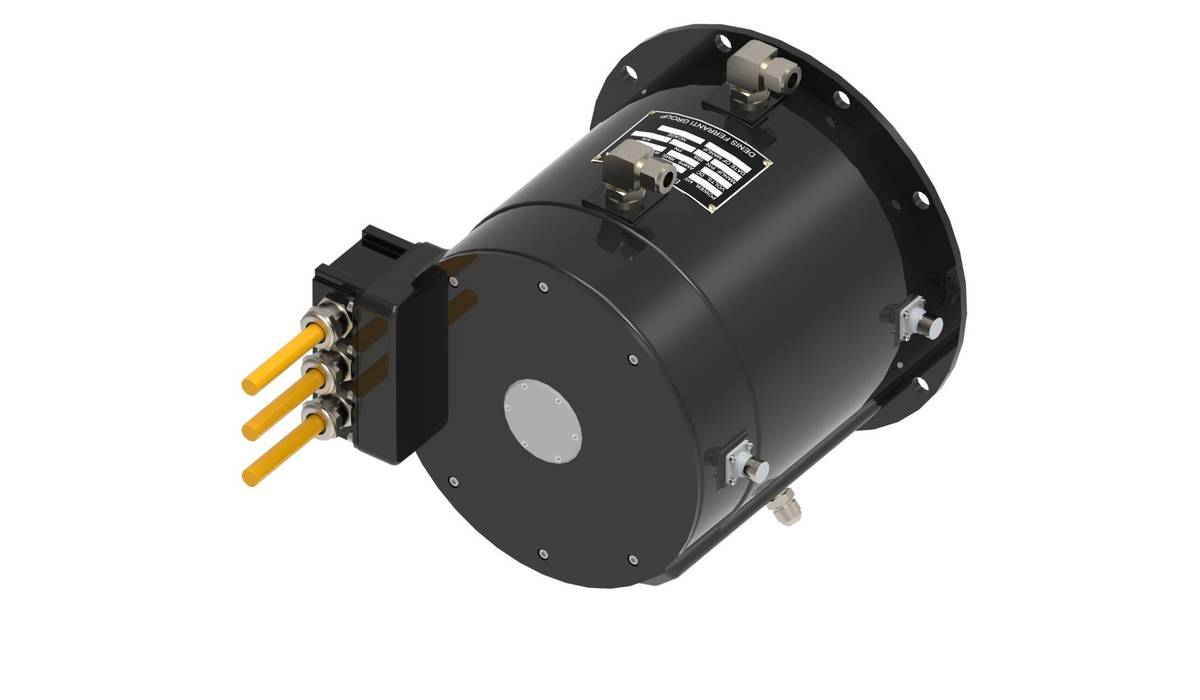

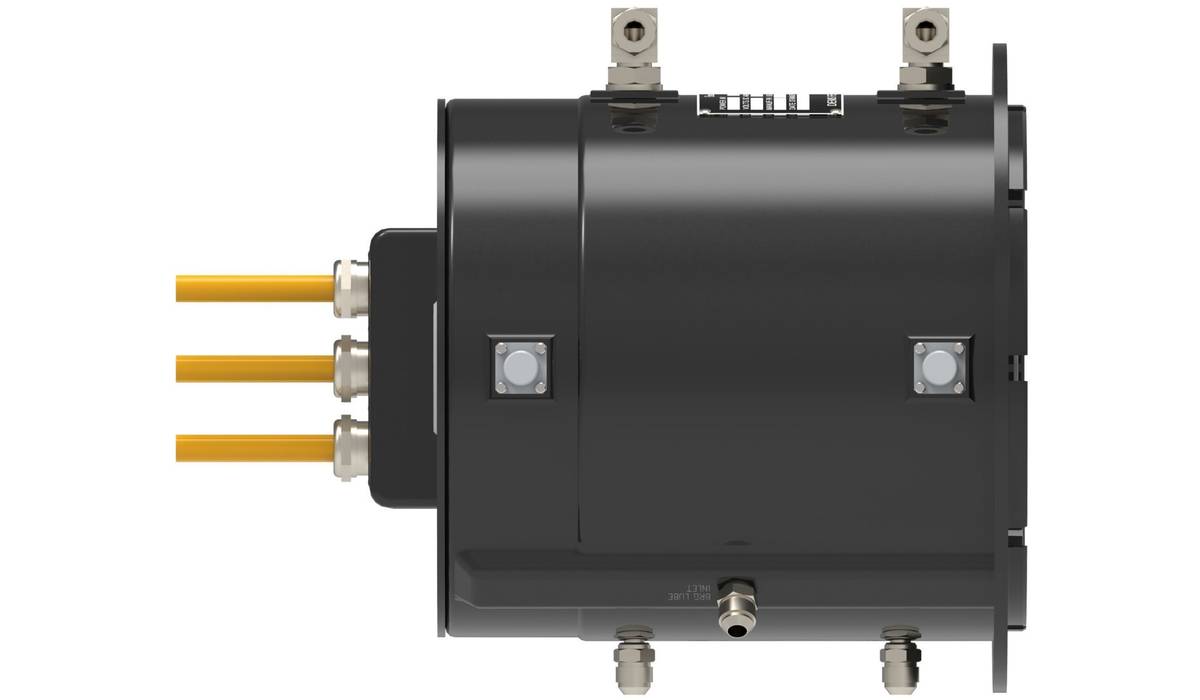

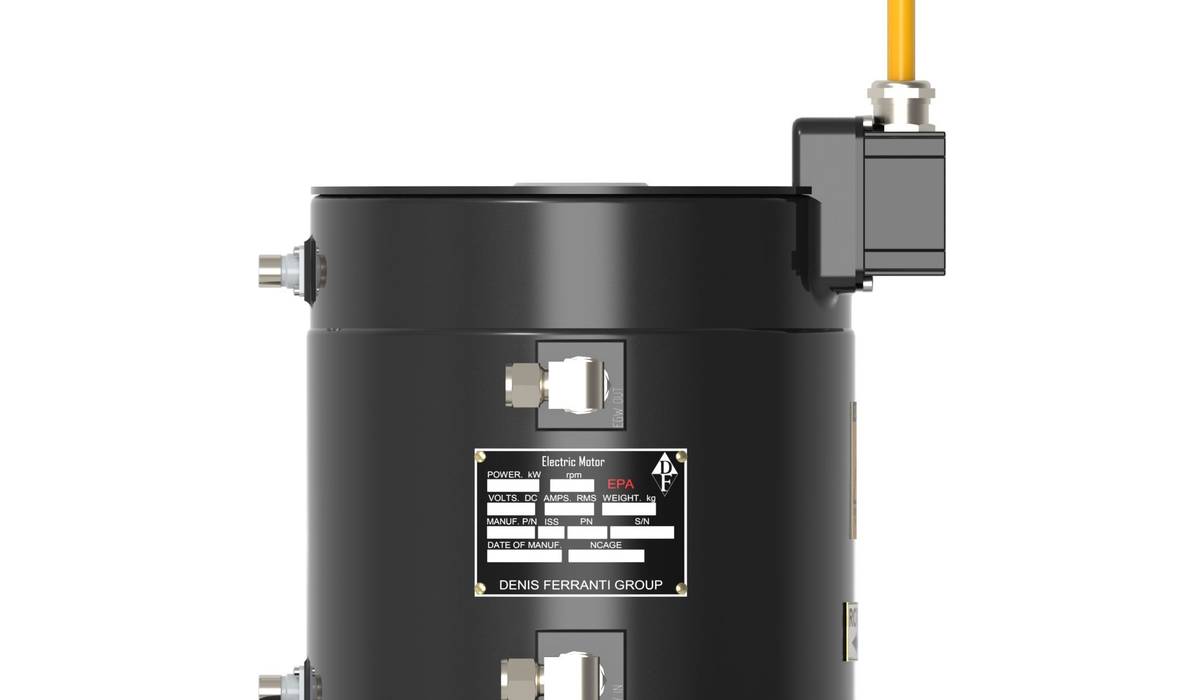

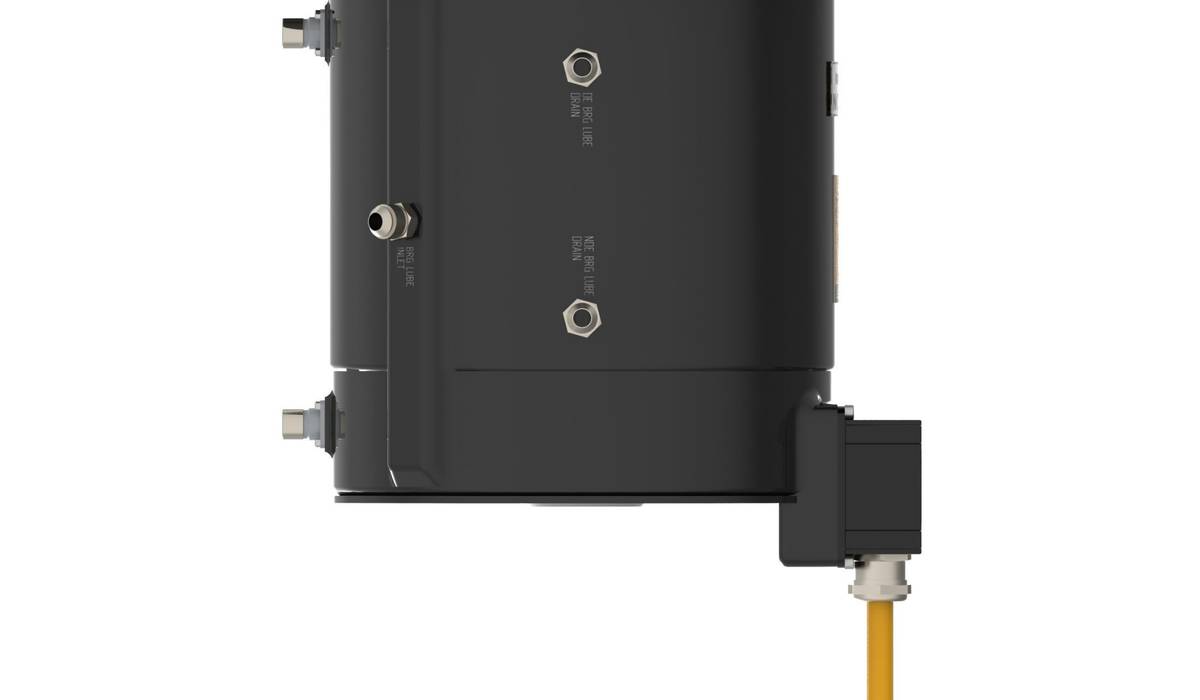

High Power Electric Machine
- Peak power: 538 kW
- Peak Torque : 310 Nm
- Speed: 0-16,600 rpm
Motor Features:
- World Leading High Power density
- Innovative liquid cooling
- Sealed motor or air cooled
- High efficiency
- Robust for harsh vibration environments
High Power Electric Machine
Speed | 16,600 rpm |
Torque | 310 Nm |
Power | 538 kW |
Efficiency | >97% |
Voltage | 506 Vdc |
Current | 770 Apk |
Operating temperature range | -55 to 85 oC |
Mass | 42 kg |
